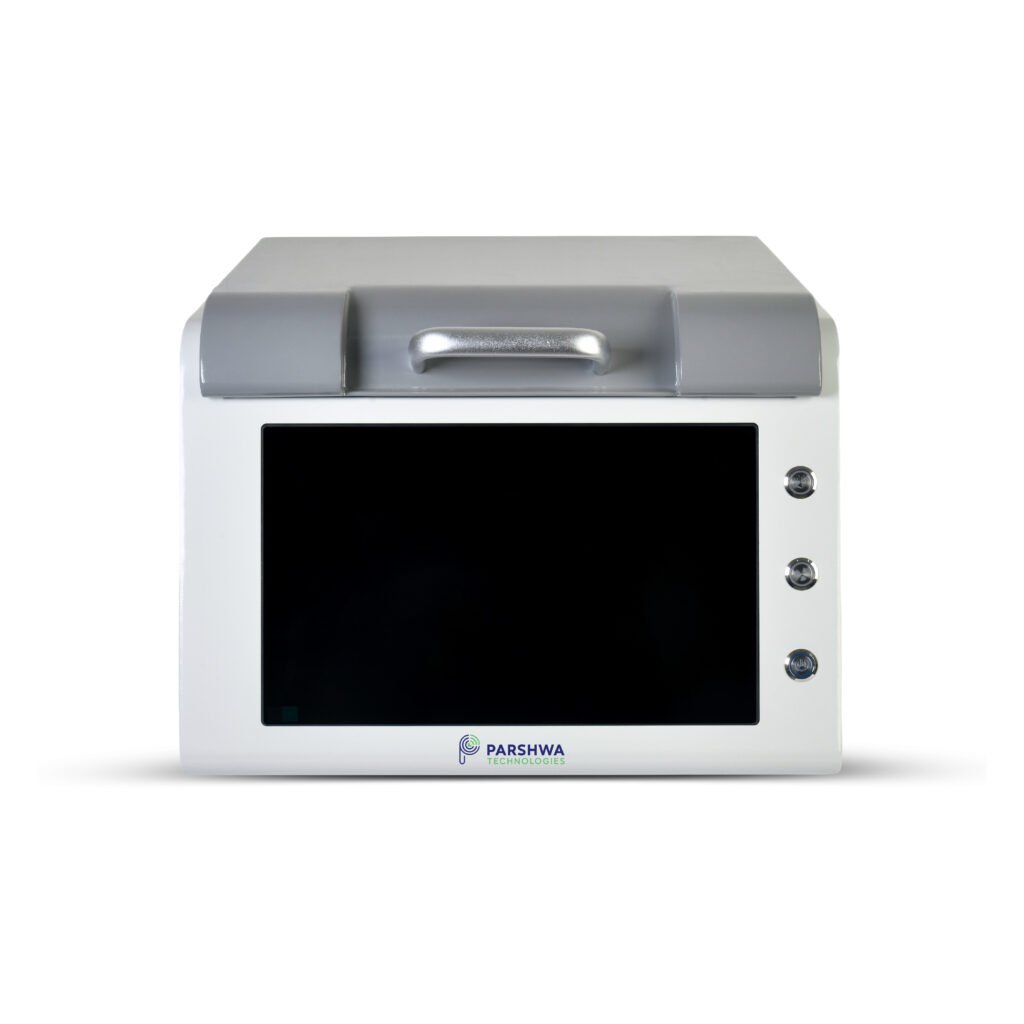

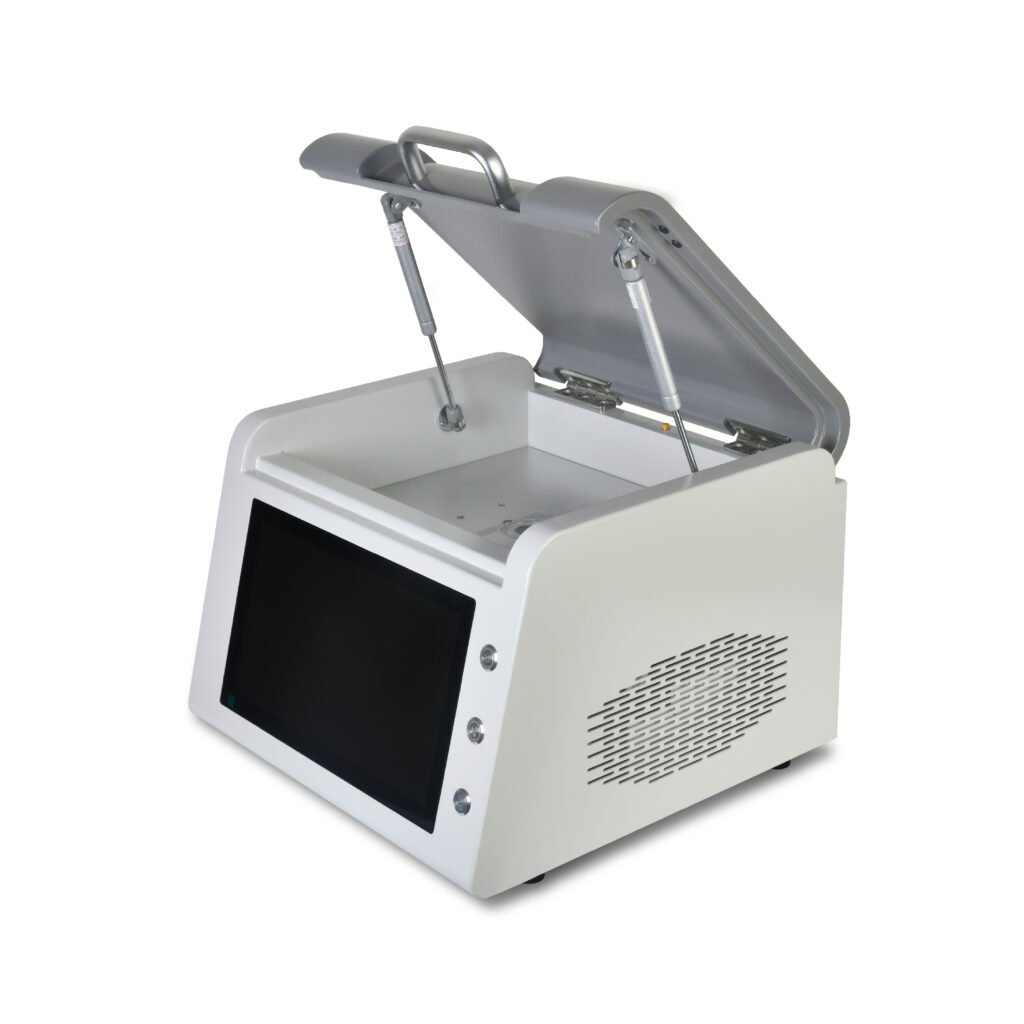

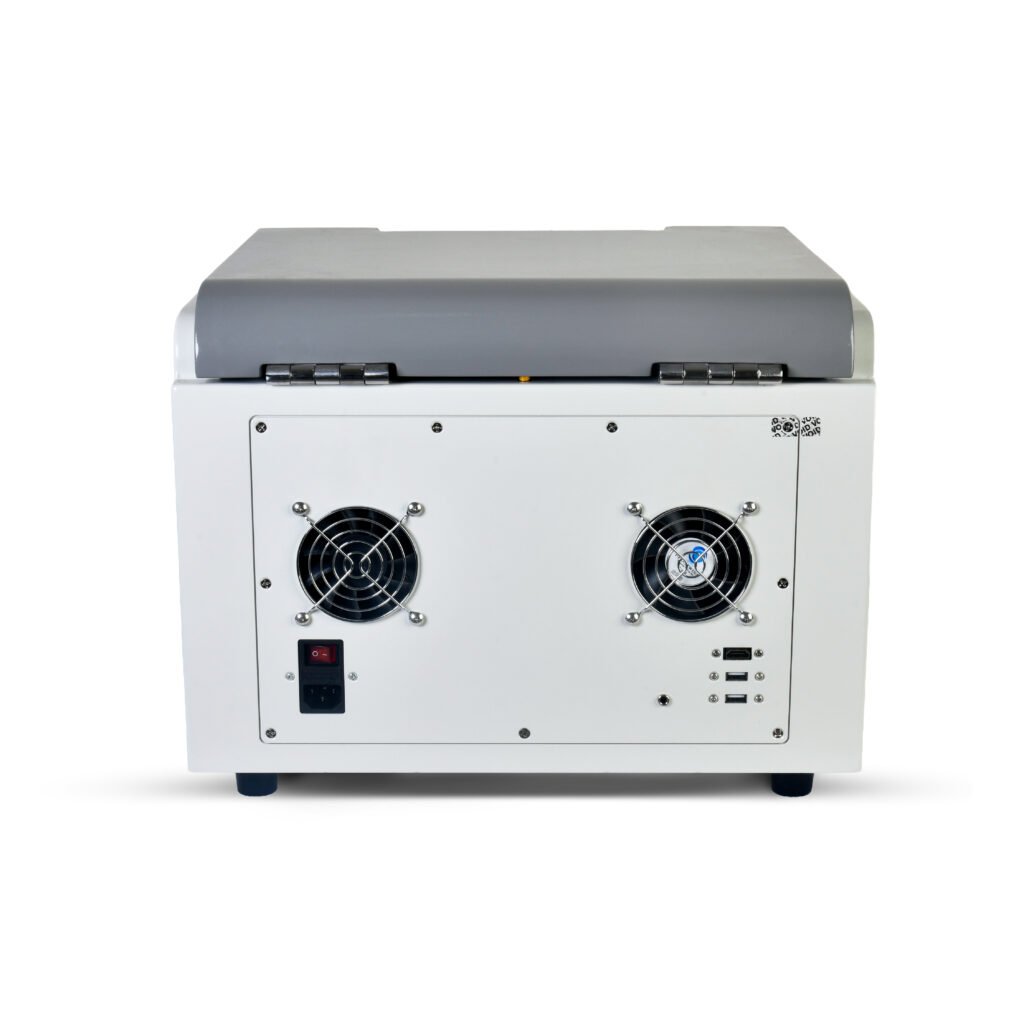

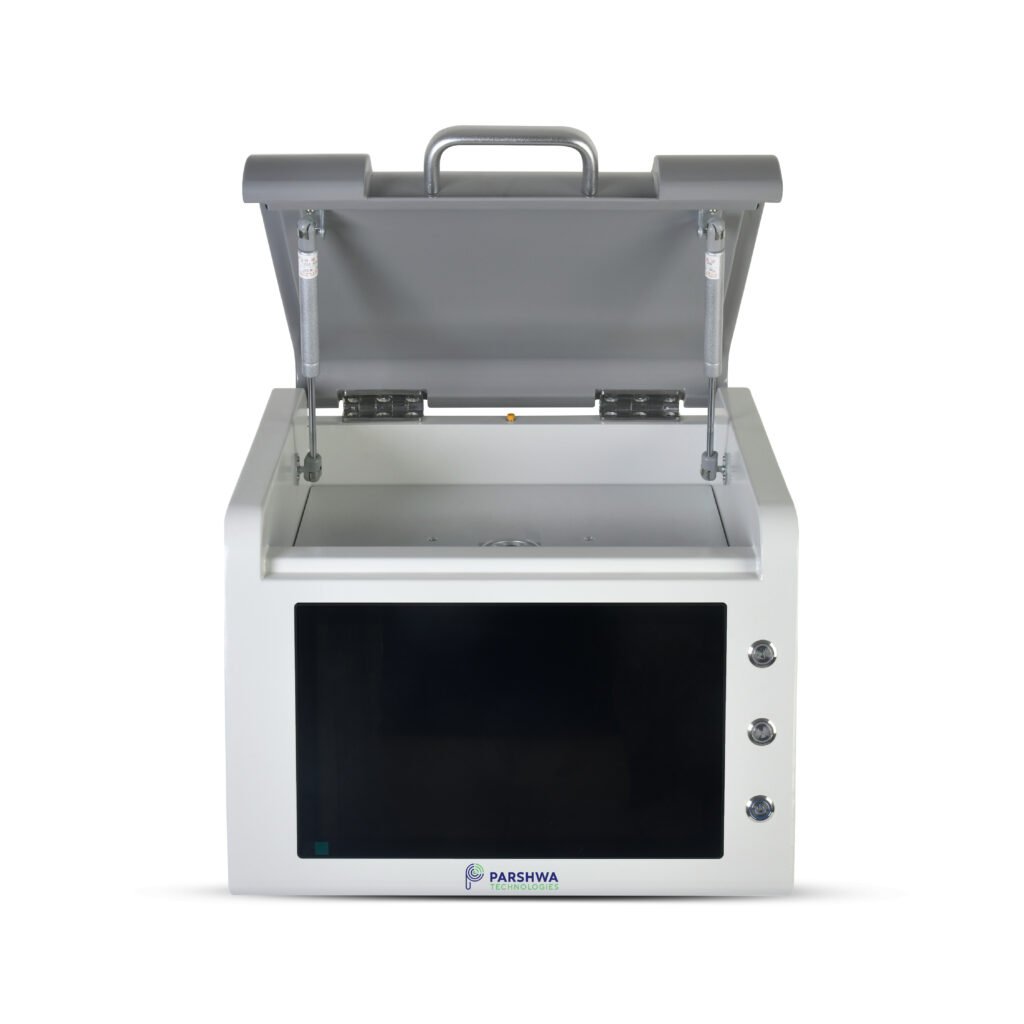

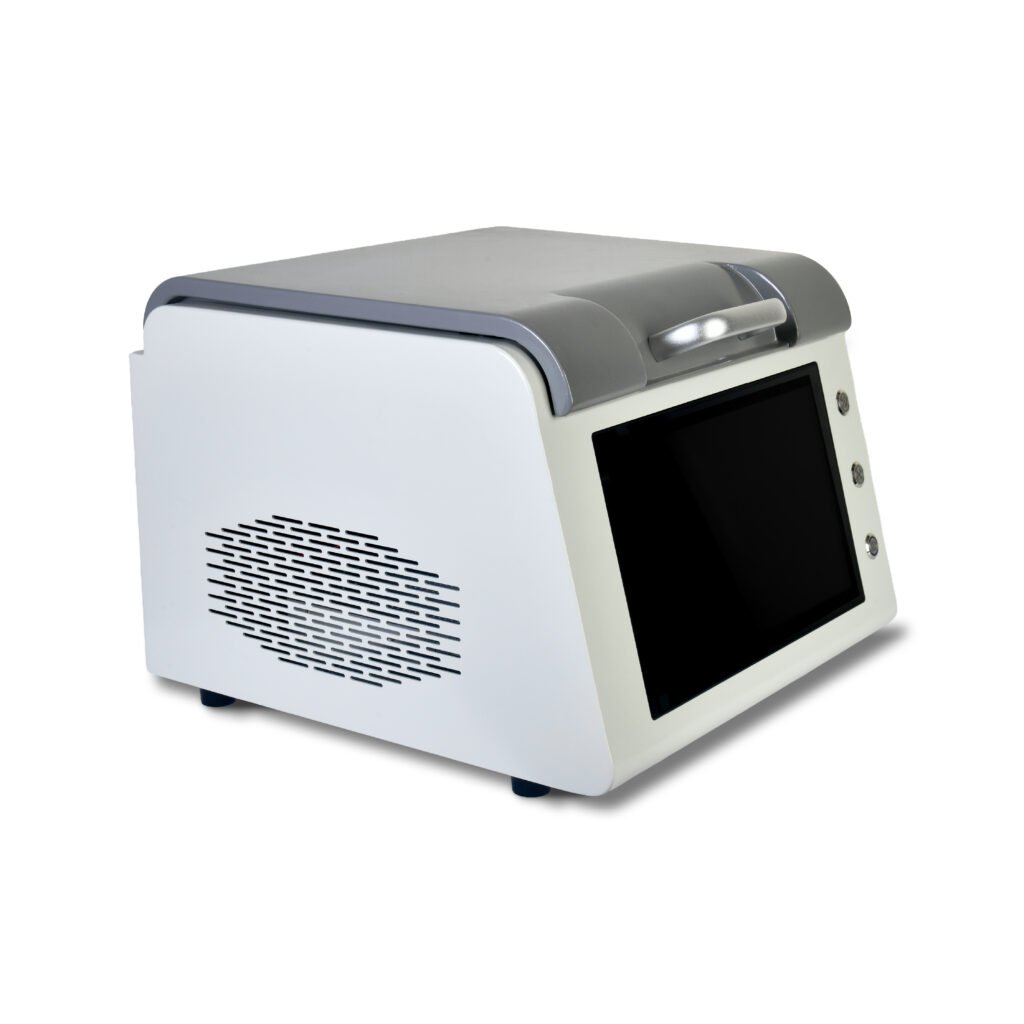

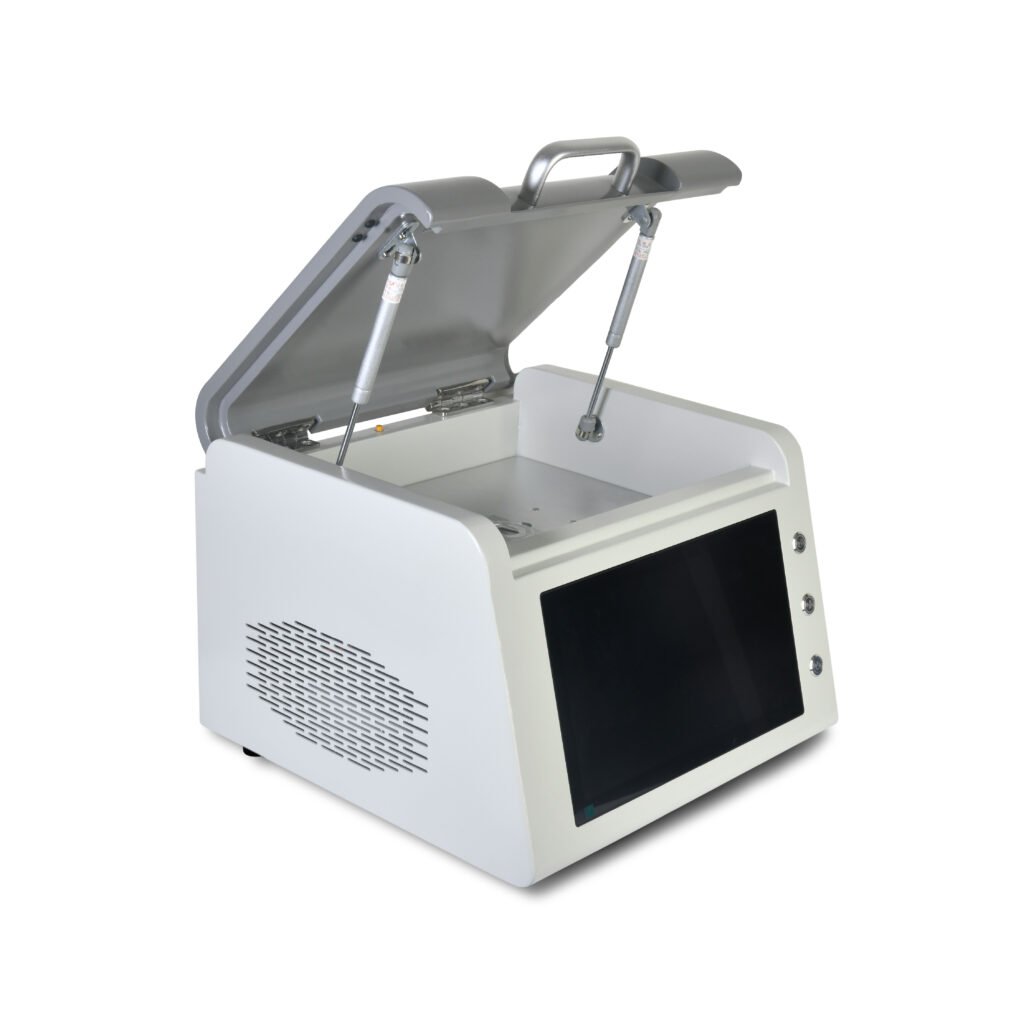

IONX-100D - Precision You Can Trust. Results You Can Act On.
Designed for Jewellery Stores, Gold Loan Companies, Banks, Hallmarking Centres, Pawn Brokers and NBFCs, this advanced XRF Gold Testing Machine delivers fast, non-destructive and highly accurate purity analysis up to 0.04% accuracy.
With its compact footprint, touchscreen operation and powerful multi-element analysis, it helps businesses verify gold instantly, reduce risk and build customer confidence.
Faster Testing. Smarter Valuation. Greater Trust.
The perfect gold testing solution for every precious metal business.
High Accuracy
Up to 0.04%
Easy to Operate
User-friendly software
with touchscreen
Reliable & Durable
Built for continuous
performance
Make in India
Service & support
you can count on
| Performance and Configuration | |
|---|---|
| Analysis Range | ppm–99.99% |
| Accuracy | ±0.04% (Au ≥99.9%) |
| Sample Form | Solid, Powder, Liquid |
| Technical Specifications | |
|---|---|
| High Voltage | 0–50kV / 0–1mA |
| Detector | SiPIN |
| Resolution | 180±10eV |
| X-ray Source | W-target, Triple Cooling |
| Collimator | 2mm (Optional 1mm) |
| Chamber Size | 400×300×150mm |
| Test Time | 10–60 sec |
| Detectable Elements | K (19–L) to 92, (except light elements) |
| Camera | HD Camera |
| Analyzer | Digital Multichannel Analyzer |
| Software | Parshwa Technologies Qualitative & Quantitative Analysis Software |
| Dimensions | 440×440×330mm |
| Weight | Approx. 30kg |
| Environmental Conditions | |
|---|---|
| Ambient Temperature | 15–30°C |
| Humidity | 15–75% |
| Power Supply | AC 220V ±5V, 50/60Hz |
| Interference Protection | Avoid strong electromagnetic & vibration sources |
